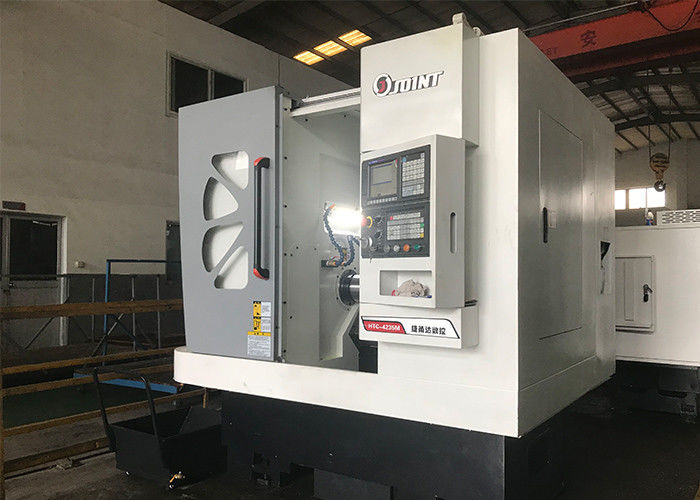

6000rpm Spindle Speed Slant Bed CNC Lathe Machine , 330mm Workpiece CNC Metal Lathe

Products Details

Name: Cnc Lathe Machine Model: HTC4235
Max Swing Diameter Over Table: 420mm Max Length Of Workpiece: 330mm
Z Aixs Limited Travel: 350mm Spindle Rotation Speed: 6000rpm
Max Swing Diameter Over Bed 420mm Slant Type Cnc Lathe Machine Spindle Through Hole 56mm Product Feature 1. Y axis have engraving function. 2. This model is for turning, side milling and drilling. 3. Big space for machining, Z/X axis travel is long. 4. Y axis and X axis have 2 living tooleach; X axis can install 3-5 gang tools. 5. Japan gear, low sounds, high precision for Y axis living tool. 6. Spindle with C-axis indexing function. 7. Base and the slanting bed is one piece. 8. living tool max speed is 6000rpm 9. Gsk controller system or Fanuc control system / Other Controller system Special Model * The machine is equipped with a drilling slide which enabe the machine to perform O.D and I.D. machining at one time. * 8-position hydraulic turre or 12-position power turret. * The spindle accommodates a 6" jaw chuck or collet chuck. * 30° slant bed structure facilitates chip disposal and easy workpiece access. * C axis. * 3 position side drilling device+Y axis. Applicable industries CNC machine tool has been applied to the airline industry sector, gradually expand to the automobile,shipbuilding, machine tools, construction machinery manufacturing industry.For copper, aluminum , iron,plastic and other precision parts manufacturing,applicable to instruments , watches, cars, motorcycles,bicycles , eye wear , stationery , hardware, sanitary ware, electronic components , connectors , computers,cell phones , electronics, military and other industries in bulk machining small parts, especially the more complex parts. 6000rpm Spindle Speed Slant Bed CNC Lathe Machine , 330mm Workpiece CNC Metal Lathe Specification of cnc lathe machine
Model HTC4235M
Max swing diameter over table 420mm
Max cutting diameter 420mm
Max length of workpiece 330mm
X axis limit travel 480mm
Y axis limit travel 350mm
Spindle rotation speed 6000rpm
Spindle through-hole diameter 56mm
bar diameter 45mm
Spindle head type
Spindle motor power 5.5mm
Spindle motor on-off time 0-2000rpm:1S 0-4000rpm:1.5S 0-6000rpm:2S
Servo motor connection way direct connection
Max rapid feed of X axis 20m/min
Max rapid feed of Z axis 20m/min
X axis motor torque /power 8NM/1.7kw
Z axis motor torque /power 8NM/1.7kw
Y axis motor torque /power 8NM/1.7kw
Driving power head motor torque /power 10NM/2KW
Repeat position accuracy 0.005mm
Power 8.5kw
Diemension 2030*1665*1814mm
Net weight 2500kgs
Standard accessories GSK Or Syntec or Fanuc controller hydraulic three jaw chuck 5.5KW servo spindle motor Taiwan spindle Imported ball screw Imported linear way
