Name: | Vertical Machine Center VMC1370 | Table Size: | 1400*710mm |
---|---|---|---|
X/Y/Z Axis Travel: | 1300/700/650mm | Spindle Motor: | 15kw |
Spindle Taper: | BT50 45° | Distance Between Spindle And Table: | 150-800 Mm |
Net Weight: | 10300kg | Max Load: | 1000kg |

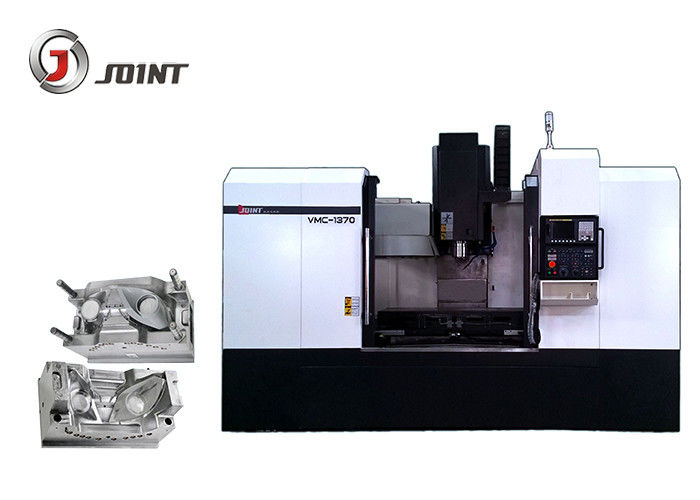

15KW BT50 Taiwan Spindle Vertical Machine Center VMC1370 1300mm X Axis TravelQuick details:1.VMC1370 is a new type of high speed machining center, which is widely applied in machining processes like milling,tapping and drilling in the industries of making molds and parts.2. It is applied high speed spindle,the max speed reaches to 8000 RPM, and the rapid movement speed of worktables (Axes-X/Y) reaches to 15000 mm/min,suitable for massive production of moulds.3.Compact and reasonable structure design make the appearance eye-balls catching extraordinary. 4.The most reliable CNC controller in the industry powered by FANUC 0i-MF. Product features:1. HIWIN transmission unit applied precise and high speed linear guide and C-3 grade grinding ballscrew.2. High speed accurate mechanical spindle and servo spindle motor, ensures the reliable machining force and torque output.3. Integral base iron casting and Unique design of compact tight anti-dust shield.4. Centralized automatic lubrication system,and cooling&lighting system equipped.5. The other brands CNC controllers, hard rail or linear rail and the 4th axis are optional to meet your particular financial and technical requirements.6 .The machine units and key parts are rigid resin iron casting,had been through aging treatment,eliminated the inner stress to ensure the structure durable and stable.Specification Of Vertical machine center VMC1370
Standard Accessories:Fanuc Controller system8000Rpm spindleFull enclosed coverSpindle encoder position systemThree axis inner encoder feedback systemAuto lubrication systemPneumatic systemRS 232 InterfaceOperation unitRS232 Interface +working lightTool and tool boxOptional accessories:Siemens controller or other controller systemSpindle oil coolantHeat exchangerUmbrella type tool magazineArm type tool magazineScrew type auto conveyorChain type tool magazine4 Axis rotary tableRing spray spindle
Model | Unit | VMC1370 | ||
Travel | X axis | mm | 1300 | |
Y axis | mm | 700 | ||
Z axis | mm | 650 | ||
Distance between spindle and table | mm | 150-800 | ||
Working table | Table size | mm | 1400*710 | |
Max. Load of table | Kg | 1000 | ||
T slot | Pcs-mm-mm | 5-18-152.5 | ||
Positioning accuracy | X/Y/Z axis | mm | 0.01/0.008/0.008 | |
Repeated positioning accuracy | X/Y/Z axis | mm | 0.008/0.007/0.007 | |
Spindle | Spindle rotation speed | Rpm | 8000 | |
Spindle taper | BT50 | |||
Diameter | mm | Φ155 | ||
Rivet model | BT40 45° | |||
Rapid feed | X/Y/Z axis | m/min | 15/15/12 | |
Cutting feed | X/Y/Z axis | m/min | 8 | |
Tool magazine | Umbrella type | Size | Tools | 20 |
Too changing time (T-T) | Sec | 6 | ||
Max. diameter/ length/weight of tool | mm | 135/250/15 | ||
Max tool diameter (no tool adjacent) | mm | 185 | ||
Arm type | Size | Tools | 24 | |
Tool changing time (T-T) | sec | 3.5s | ||
Max. diameter/ /length/weight of tool | mm | 110/250/15 | ||
Max tool diameter (no tool adjacent) | mm | 200 | ||
Total capacity of electric | KVA | 35 | ||
Weight of machine | Kg | 10300 | ||
Dimension | mm | 3560*3300*3100 |
