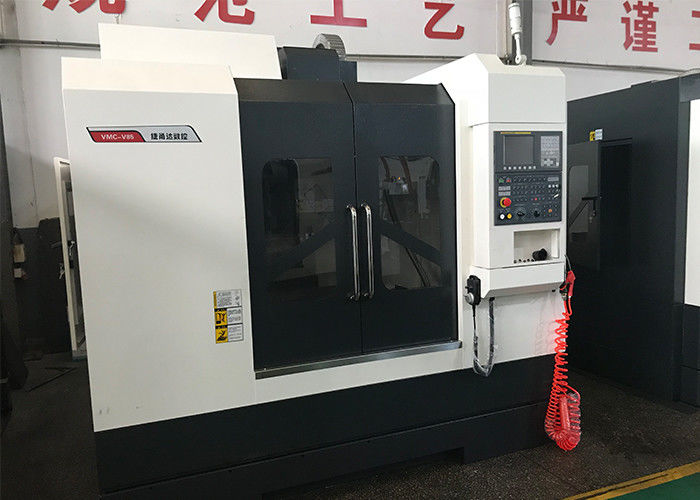

3616 Ball Screw V85 Vertical CNC Machine V85 800mm X axis Travel BT40 Spindle Product features: 1. V85 is specially designed for parts processing with 48m/min rapid feed, 15m/min cutting feed. 2. V85 adopts large span structure, which is able to bear high ineritia gravity and improves dynamic responsiveness of the whole machine. 3. V85 is equipped with BT40-140 direct connection high speed short nose spindle, which increases efficiency and reduces abrasion of tools. 4. V85 tool magazine is BT40 24 tools arm type tool magazine, which adopts mechanic seal design and software warning to ensure reliable processing. Product advantage: 1. The machine body structure The whole cast iron adopts box type and overall type structure, which improves the stability of the machine center. 2. The spindle Taiwan famous brand spindle with imported oil coolant to cool the spindle, increase the bearing’s service life, lower the influence of spindle thermal deformation on processing. 3. The transmission parts Ball screw gone through pre-stretching process to improves the rigidity of the transmission parts and eliminates the elongation of the ball screw caused by thermal stress effect, improves the stability of machine’s precision. Specification Of Vertical machine center V85

Model			Unit	V85
Travel		X axis	mm	800
		Y axis	mm	500
		Z axis	mm	500
Distance between spindle and table			mm	170-670
Working table		Table size	mm	900*450
		Max. Load of table	Kg	500
		T slot	Pcs－mm-mm	3-18-130
Positioning accuracy		X/Y/Z axis	mm	0.006/0.006/0.006
Repeated positioning accuracy		X/Y/Z axis	mm	0.005/0.005/0.005
Spindle		Spindle rotation speed	Rpm	10000
		Spindle taper		BT40
		Diameter	mm	Φ140
		Rivet model		BT40 45°
Rapid feed		X/Y/Z axis	m/min	48/48/48
Cutting feed		X/Y/Z axis	m/min	15
Tool magazine	Arm type	Size	Tools	24
		Tool changing time (T-T)	sec	2.5s
		Max. diameter/ /length/weight of tool	mm	80/250/8
		Max tool diameter (no tool adjacent)	mm	150
Total capacity of electric			KVA	15
Weight of machine			Kg	3800
Dimension			mm	2350*2100*2650

Standard Accessories Fanuc Controller system 10000Rpm spindle 24tools arm type tool magazine Spindle oil cooler Heat exchanger Full enclosed cover Spindle encoder position system Three axis inner encoder feedback system Auto lubrication system Pneumatic system RS 232 Interface Operation unit RS232 Interface +working light Tool and tool box
