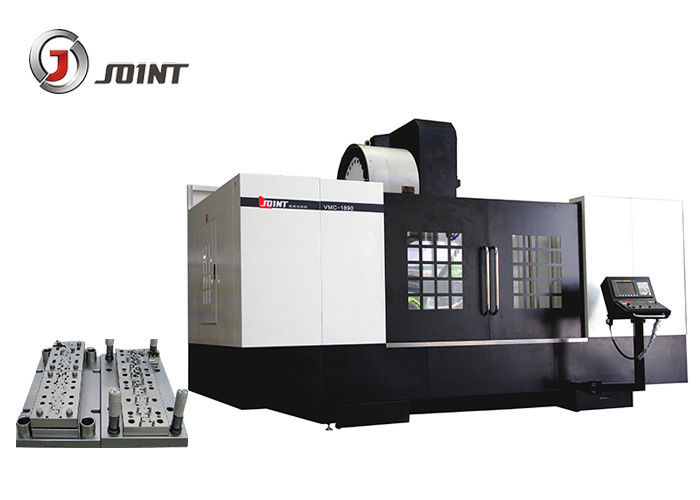

1600mm X Axis Travel Vertical CNC Machine Tools VMC1690 BT50 Taiwan Spindle Quick details: 1. The main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.2. The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce the vibration of machine on heavy cutting3. The pre-extension precision ball screw drive4. The high speed, high precision, high rigidity spindle unit5. The design of oil-water separation6. The intermittent automatic lubrication7. Automatic scraping knife system Product features:1. The vertical machining center can be applied to many fields such as mechanical processing and mould manufacturing, canadapt from roughing to finishing processing requirements. 2. VMC1690 has the characteristics of high precision, high efficiency, is widelyused in aerospace, military industry, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing, oil, electronics and other industries. 3. High rigidity high precision slide and big diameter of ball screw are used, which can make the machine work stably at high speed when under the situation of high speed and high strength machining.4. High rigidity base and wide column base are made of repeatly quenched and hardened meehanite cast irons which improve the rigidity of column on X axis and Y axis. Specially designed column can also absorb the shocks.5. Mainly used for complex machining on workpieces. Specification Of Vertical machine center VMC1690

Model			Unit	VMC1690
Travel		X axis	mm	1600
		Y axis	mm	900
		Z axis	mm	680
Distance between spindle and table			mm	160-840
Working table		Table size	mm	1800*900
		Max. Load of table	Kg	1600
		T slot	Pcs－mm-mm	5-22-165
Positioning accuracy		X/Y/Z axis	mm	0.012/0.01/0.008
Repeated positioning accuracy		X/Y/Z axis	mm	0.01/0.008/0.007
Spindle		Spindle rotation speed	Rpm	6000
		Spindle taper		BT50
		Diameter	mm	Φ155
		Rivet model		BT50 45°
Rapid feed		X/Y/Z axis	m/min	15/15/12
Cutting feed		X/Y/Z axis	m/min	8
Tool magazine	Umbrella type	Size	Tools	20
		Too changing time (T-T)	Sec	6
		Max. diameter/ length/weight of tool	mm	134/200/15
		Max tool diameter (no tool adjacent)	mm	185
	Arm type	Size	Tools	24
		Tool changing time (T-T)	sec	3.5s
		Max. diameter/ /length/weight of tool	mm	110/200/15
		Max tool diameter (no tool adjacent)	mm	200
Total capacity of electric			KVA	45
Weight of machine			Kg	13200
Dimension			mm	5000*4300*3600

Standard Accessories:Fanuc Controller system6000Rpm spindleFull enclosed coverSpindle encoder position systemThree axis inner encoder feedback systemAuto lubrication systemPneumatic systemRS 232 InterfaceOperation unitRS232 Interface +working lightTool and tool boxOptional accessories:Siemens controller or other controller systemSpindle oil coolantHeat exchangerUmbrella type tool magazineArm type tool magazineScrew type auto conveyorChain type tool magazine4 Axis rotary tableRing spray spindle
