Products Details
Name: | Vertical CNC Machine V85 | X Axis Travel: | 800mm |
Y Axis Travel: | 500mm | Z Axis Travel: | 500mm |
Spindle Type: | BT40 Short Nose Spindle | Spindle Motor: | 7.5kw |
Dimension: | 2450*2180*2650mm | Max Load: | 500kg |

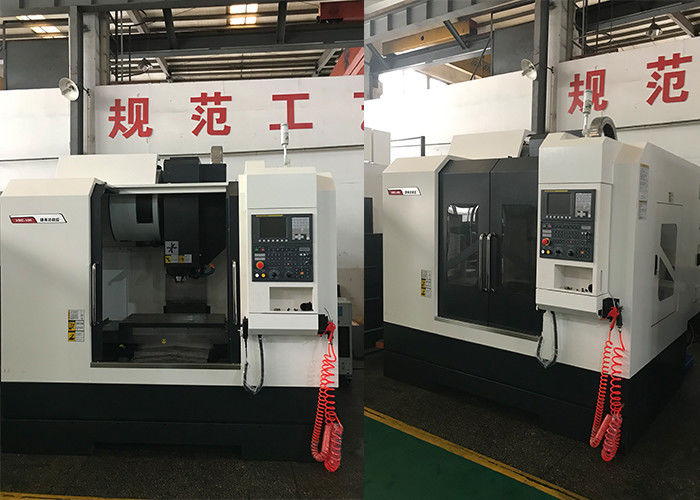

Max Load 500kg Vertical CNC Machining Center V85 BT40 Short Nose Spindle Product features: 1. V85 is high efficiency vertical machine venter forparts processing with 3 axis roller linear guide way. 2. V85 adopts short nose spindle design, increase processing efficiency and reduces tools abrasion. 3. V85 support backward chip removal with mass flow chip flushing system, suits for particular parts processing for faster chip removing. 4. V85 standard spindle rotation speed is 10000rpm, 12000/15000rpm is optional according to your processing requirements. Product advantage: 1. The machine body structure Lightweight of moving parts reduces the inertia of the transmission system. The whole machine adopts oil water separator machine’s structure. 2. Guideway 3 axis adopts high precision high speed roller linear guide way, high rigidity, low noise, low friction, high sensitivity, improves the processing speed and precision. 3. The controller system Equipped with high performance Mitsubishi or Fanuc controller system, ensures stable control of the machine, also meet with customer’s requirement on CNC processing function and auxiliary function. Specification Of Vertical machine center V85 Model | Unit | V85 |
Travel | X axis | mm | 800 |
Y axis | mm | 500 |
Z axis | mm | 500 |
Distance between spindle and table | mm | 170-670 |
Working table | Table size | mm | 900*450 |
Max. Load of table | Kg | 500 |
T slot | Pcs-mm-mm | 3-18-130 |
Positioning accuracy | X/Y/Z axis | mm | 0.006/0.006/0.006 |
Repeated positioning accuracy | X/Y/Z axis | mm | 0.005/0.005/0.005 |
Spindle | Spindle rotation speed | Rpm | 10000 |
Spindle taper | | BT40 |
Diameter | mm | Φ140 |
Rivet model | | BT40 45° |
Rapid feed | X/Y/Z axis | m/min | 48/48/48 |
Cutting feed | X/Y/Z axis | m/min | 15 |
Tool magazine | Arm type | Size | Tools | 24 |
Tool changing time (T-T) | sec | 2.5s |
Max. diameter/ /length/weight of tool | mm | 80/250/8 |
Max tool diameter (no tool adjacent) | mm | 150 |
Total capacity of electric | KVA | 15 |
Weight of machine | Kg | 3800 |
Dimension | mm | 2350*2100*2650 |
Standard Accessories Fanuc Controller system 10000Rpm spindle 24tools arm type tool magazine Spindle oil cooler Heat exchanger Full enclosed cover Spindle encoder position system Three axis inner encoder feedback system Auto lubrication system Pneumatic system RS 232 Interface Operation unit RS232 Interface +working light Tool and tool box
