| Name: | Cnc Turning Machine | Model: | HTC35 |
|---|---|---|---|
| Max Swing Diameter Over Table: | 360mm | Max Length Of Workpiece: | 200mm |
| Spindle Through Hole Diameter: | 56mm | Z Aixs Limited Travel: | 270mm |
| Spindle Motor: | 5.5kw | Spindle Rotatio Speed: | 6000rpm |

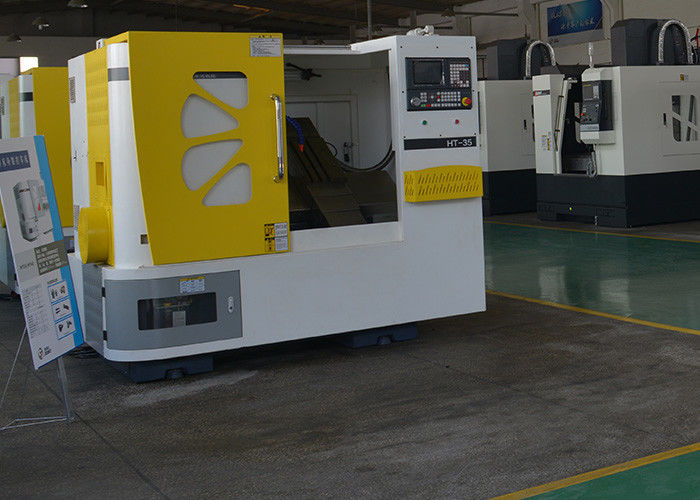

Horizontal Type Three Axis Max Swing Diameter 360mm Cnc Turning Lathe Machine 6000Rpm Prouduct feature X/Z is linear way ,rapid feed is 20m/min Taiwan high speed spindle ,ensured the accuracy and high speed Coulping ,bearing ,ball screw and linear way are imported from German ,Japan and Taiwan famous brand Auto lubrication system , reduces wear and keep the accuracy Special Model Great travel cnc lathe machien ---HTC 3630M Equipped with power head and servo motor ,achived raidal and axis milling function Adopted multi pipeline and big power coolant system ,ensure the surface finensess of the turn-milling Spindle brake system,assured the accuracy of milling Automation------cnc lathe machine With truss Robot Specification of cnc lathe machine
| Model | HT35 |
| Max swing diameter over table | 360mm |
| Max swing diameter over carriages | 120mm |
| Max length of workpiece | 200mm |
| Spindle head | A-5(6") |
| Spindle motor | 5.5KW |
| Spindle rotation speed | 6000rpm |
| Spindle through-hole diameter | 46mm |
| bar diameter | 32mm |
| X axis limited travel | 380mm |
| Z axis limited travel | 270mm |
| Tool post | Gang tool /Four position electrical turret /six or eight position hydraulic turret |
| Height of tool turret center | 63mm |
| X axis rapid movement | 20m/min |
| Z axis rapid movement | 20m/min |
| Bed type | whole body slant type 45° |
| Dimension | 1500*1100*1700mm |
| Net weight | 1750kgs |
