Products Details

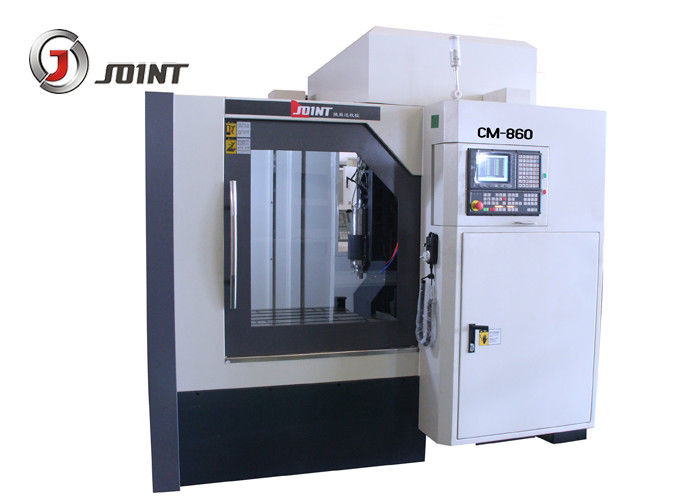

Table Size: | 800*600mm | Model: | CM-860 |
Tabel Travel: | 680*760*330mm | Rotation Speed: | 500-240000rpm |
Spindle Motor: | 5.5kw | 3 Axis Servo Motor: | 0.85kw |
CNC Engraving Machine , three axis linear guide way 800 * 600mm table Taiwan brand 5.5KW/ER25/24000rpm spindle Product Feature 1. X/Y/Z axis are linear guide way , 2. Guaranteespindle stationary in high speed running, realized high finish machining. 3. High precision ,high rigidity machine body 3. HIgh rigidity finit element design machine casting, spindle box strengthening rod, reinforced structure. 4. Coupling ,spindle bearing ,spindle,ball screw ,and other key parts are imported from germany Japan and taiwan top brands to ensure high quality and stability 5. Taiwan high precise 40000rpm/HSK electrical spindle, realized high speed processing. Feature: 1. Spindle with germany HEIDENHAIN encoder, driving, realize rigid tapping. 2. The cutting strength increased 20% in comparison with similar models 2. Resin sand casting, German brand or Taiwan brand linear guide way, screw 4. Key parts are imported from Famous top brand 3. Japanese/German bearing, ensure machine high precision, high quality and precision of stability. Details: 1.Three axes adopt Taiwan brand line rail 2. ER25/24000RPM/5.5KW Spindle 3. Japanese NSK Precision bearing and Taiwan High quality Precision Ball Screw 4. Syntec 11MA/21MA Controller 5. High performance imported CNC system 6. Realize high speed processing Specification of cnc engrave machine for metal Model | CM-860 |
Table size | 800*600mm |
X axis travel | 680mm |
Y axis travel | 760mm |
Z axis travel | 330mm |
Width of gantry | 760mm |
Spindle taper | ER25/BT30 |
Spindle Rotation speed | 24000/18000rpm |
Spindle motor | 5.5kw |
X/Y/Z axis servo motor | 0.85kw |
Distance between tool head and table electrial | 50-380mm |
X/YZ axis feed speed | 8m/min |
X/Y/Z axis rapid speed | 10m/min |
Dimension | 2510*2337*2310mm |
For more details, welcome to contact with us by clicking here. Precision machinery manufacturer since 1995. Your reliant expert on moulding and machining equipemnt! Q1. How can I get a quotation? A. Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone. Q2. Can you provide customized machine or SPM (Special purpose machine)? A. Yes, we provide smart solutions for our customer, in order to increase efficiency. Q3. Can you provide training for operation CNC machines A. Yes, free training in our factory is available. Q4. How about your price? A. Send me details about what you need, you will get the best price in China. The price is competitive over the world. Q5. What's your warranty terms? A.We will supply a replacement for parts that prove to be defective for a period of 12 months, starting on the machine’s bill of lading date. Extended warranty is available at the time of purchase. Please contact your Joint sales representative for details. Q6. What’s the delivery time, and what’s the package? A. Normally the delivery time is about 15 days if the goods are in stock, 35 days if the goods are not in stock. All our machinery are packed with sea worthy package.
