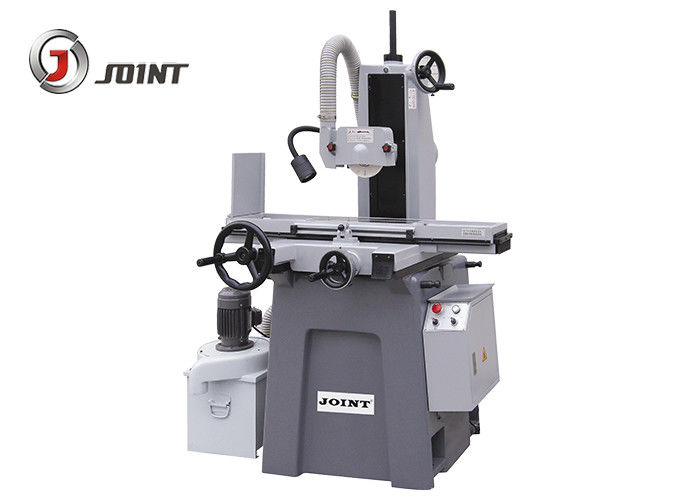

High cost performance high precisioncost surface grinding machine 818M 1. Flat-V guideway are adopt on longitudinal and cross way to get good guidance quality,and coat with TURCITE-B belt,precision handscraping to keep stable wok accuracy. 2.Strengthen ribs are set inside of the rear slide base,make sure great stability support for spindle. 3.The machine bed and rear slide bed are assembled to one piece,to supply super strong base for efficient working. 4.Hardened steel guide way and Taiwan rolling ball structure is adopt on X axis, with smoothly motion,high accuracy and long life.

Model					818M
Table size					460*200mm
Travel ( Longitude )					510mm
Travel ( Crossward )					210mm
Table side way					Slide way
Max.distance from spindle center to working table					390mm
Crossward feed of hand wheel ( 1Rev )					4
Crossward feed of hand wheel ( 1Div )					0.02
Vertical feed of hand wheel ( 1Rev )					1
Vertical feed of hand wheel ( 1Div )					0.005
Rotation speed					2880rpm/50HZ3360rpm/60HZ
Grinding wheel size					Ø200*(6-20)*Ø31.75mm
Spindle motor					2*2
Vertical driven motor					0.12*2
Dust-clean motor					0.75*2
Coolant pump motor					0.12*2
Dimension ( L*W*H )					1500*1220*2090mm
Net weight					900kg
