| Name: | Cnc Deep Hole Drilling Machine | Innder Diameter Of Drilling: | 3-45mm |
|---|---|---|---|
| Max Depth Of Drilling: | 2200mm | Table Size: | 2800*1700mm |
| Travel: | 7100*7100*3300mm | Load Weight: | 15000kgs |

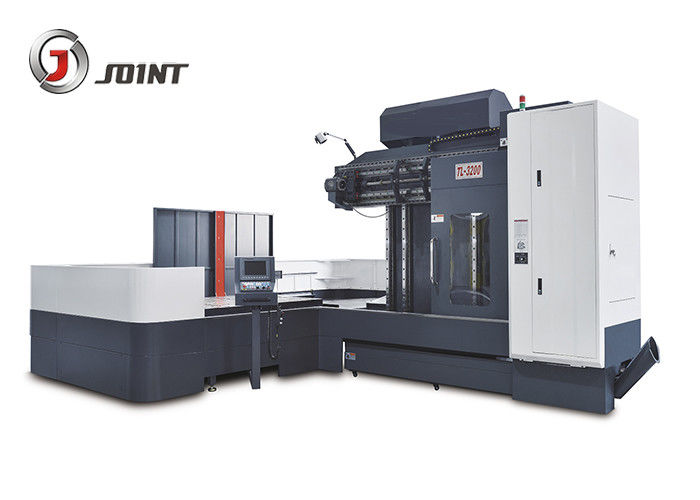

Depth 2200mm Cnc Deep Hole Drilling Machine Making An Deep Hole Max Diameter φ 45 Product Feature 1. Tube Plate CNC Deep-hole Drilling Machine is one of the deep hole automatic control machine tools for special purpose. 2. There are both single axis processing and multiple axis processing function.The CNC programming automatic processing ensures the good quality such as the spacing of the hole,diameter tolerance, verticality, harshness, etc.It’s a totally different from the traditional processing ways of multiple collections,which extremely improves the production capacity.There are also optional chip conveyors:outside chip conveyor gun drill or inner chip conveyor BTA. 3. Tube Plate CNC Deep-hole Drilling machine tools are suitable for varies plate processing,such as tube exchanger, pressure vessel, condenser, evaporator, boilers, central air conditioning,seawater desalination system, oil refining system, etc. Processing Range At present ,deep hole drilling ia mainly used in industries as following: 1. Mould industry: water line hole, thimble hole,ejection pin hole, electric hole, and inclined hole, ect. 2. Hydraulic machinery industry : Valve ,distributor and pump,ect. 3. Automotive industry : Cylinder ,fuel supply system and other parts. 4. Aerospace industry: The propeller ,landing gear and other parts. 5. Chemical and generator industry : Heat exchange partsIn the furture , deep hole drilling will be more widely used in different fields, and will have more excellent performance . Specification
Standard accessories Taiwan spindle Fanuc or Mistubishi controller Spindle oil cooler NSK Bearing Gundrill Precision guide sleeve and rubber guide Grinder machine HIWIN linear way
| Model | TL1600 |
| Number of drilling spindle | Uniaxial |
| Inner diameter of drilling | 2.5-40mm |
| Max depth of drilling | 1600mm |
| Size of working table | 1800*1100mm |
| X axis travel | 1600mm |
| Y axis travel | 1100mm |
| Z axis travel | 1650mm |
| Drilling cutting feed rate | 10-250mm |
| Max rotary speed of spindle | 7000rpm |
| Spindle motor | (servo)11-15kw |
| Moving motor from right to left on work table | servo 3.0kw |
| Moving motor from up to down on spindle | servo 3.0 kw |
| Moving the motor from front to back on spindle | servo 2kw |
| Pressure of cutting pressure pump | 80 kgf/cm² |
| Oil mass of oil pressure pump | 6-60 L/min |
| Capacity of cutting oil tank | 700 L |
| load capacity of working table | 10000kgs |
| machine net weight | 13000kgs |
| Machine power | 30kw |
