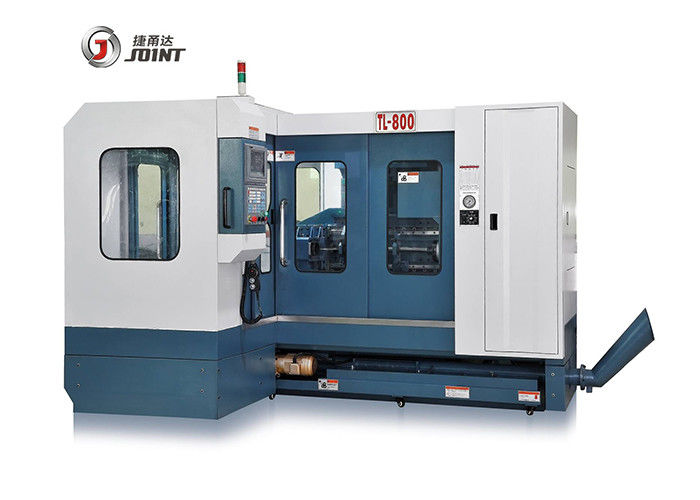

Three Axis Cnc Deep Hole Gun Drilling Machine Making An Deep Hole 800mm With Milling Function Product Feature 1. single,multi-spindles, three coordinate deep hole drilling machine is specially to drill single dimensional, double dimensional,three dimensional deep holes, 2. it is suitable for drilling square workpiece,specific workpiece,multi-holes round workpiece and so on . Same diameter holes, one time clamping can finish all the holes on the workpiece. High efficient ,easy to operate. 3. this series gun drilling machine work table can load up to 12 tons, upside and sown side travel distance can be 1000mm. 4. We also can design the machine according to customer's demand Processing Range The precision CNC deep hole drilling machine produced by the company is suitable for various kinds of work pieces for deep hole processing: 1. die & mould industry (water transport hole, hot runner, guide roller hole, etc.) auto industry (deep hole processing in cylinder head, crankshaft, hydraulic tubing, plunger bushing, etc.); 2. oil pump & lubricating nipple industry (deep hole processing in oil-injection gas, nozzle valve, plunger bushing, and other spare parts); textile machinery industry (mesopore processing of various spindles); 3. medical equipment industry (axial processing in titanium alloy, stainless steel, etc.); mine & oil machinery (deep hole processing on piston rod, cylinder walls); 4. deep hole processing of rotor, central spindle, value spindle, unit outer cylinder, condenser tube plate in the industry of electrical power, steam turbine. Specification

Model	TL800
Number of drilling spindle	Uniaxial
Inner diameter of drilling	2.5-30mm
Max depth of drilling	800mm
Size of working table	900*700mm
X axis travel	800mm
Y axis travel	600mm
Z axis travel 9	00mm
Drilling cutting feed rate	10-250mm
Max rotary speed of spindle	7000rpm
Spindle motor	(servo)7.5-11kw
Moving motor from right to left on work table	servo 2.0kw
Moving motor from up to down on spindle	servo 2.0 kw
Moving the motor from front to back on spindle	servo 1.5kw
Pressure of cutting pressure pump	80 kgf/cm²
Oil mass of oil pressure pump	6-60 L/min
Capacity of cutting oil tank	600 L
load capacity of working table	5000kgs
machine net weight	6500kgs
Machine power	23kw

Standard accessories Taiwan spindle Fanuc or Mistubishi controller Spindle oil cooler NSK Bearing Gundrill Precision guide sleeve and rubber guide Grinder machine HIWIN linear way
