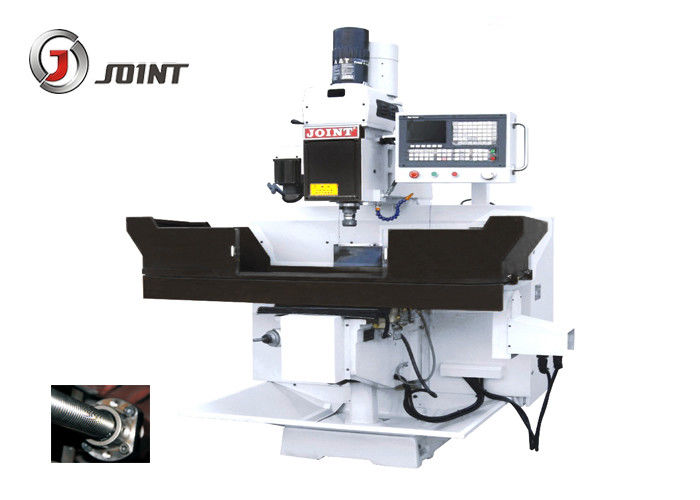

3HP motor special design NC milling machine for metal processing 1. Japanese nsk Precision bearing and Hsing Tong Xiang / Hong Tai Fine quality Ball Screw 2. The machining of circumference and positioning can be realized by adding NC rotary table 3.Fit for small metal parts processing 4. Implement program editing directly in numerical control system 5.High strength, good stability, not easy to deform Features: 1. Good control characteristics, large torsion. 2. Design of triaxial hardened sliding track 3. Rigidity and accuracy 4. Reasonal price 5. good follow precision, quick reaction, good stability 6. Special design and high accuracy Main details 1.The three coordinate axes of Japan, Yaskawa motor or Huada motor 2.good control characteristics, great torsion, good following precision, fast response, good stability 3.Guide rail, ball screw with centralized automatic lubrication system 4.The machine is equipped with a workbench shield 5. Schneider frequency converter with strong function, compact structure and easy to install

Model	6KI
Table size	1370*330mm
T-slot(W*N*D)	16*3*68mm
X axis travel	800mm
Y axis travel	330mm
Diameter of spindle quill	86mm
Travel of spindle quill	127mm
Max distance from the spindle nose to table	430mm
Spindle rotation speed	60-4200/(stepless)
Spindle Taper	NT40
Spindle Rated power	5HP
Dimension	1900*1750*2450mm
Net weight	1400kgs
