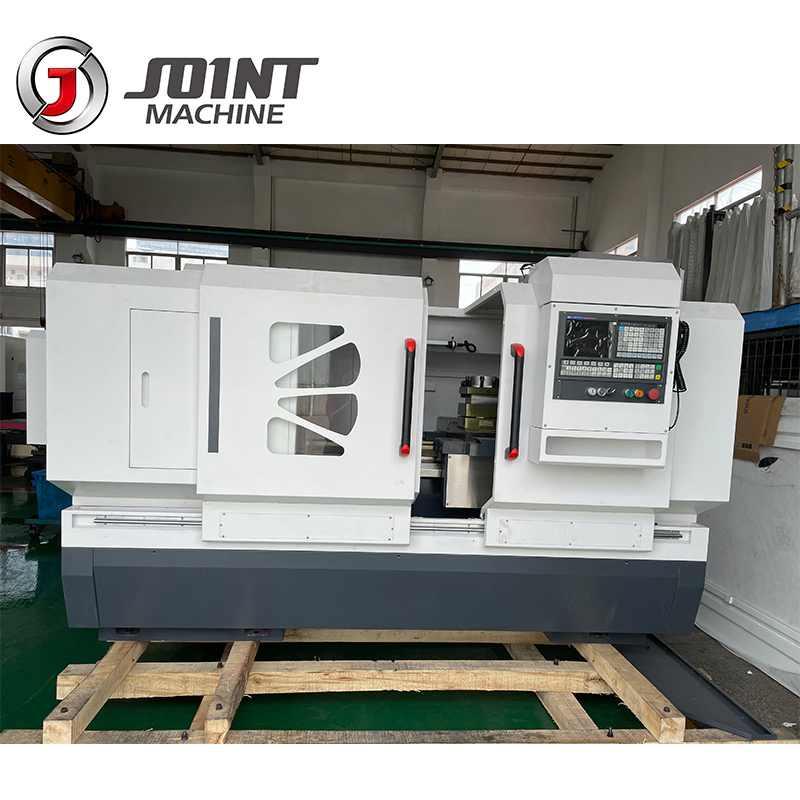

1000mm Max Processing Length Flat Type CNC Lathe Machine CKI6163 320mm Chuck Quick details: 1. CNC lathe spindle inner hole diameter, three-support structure, imported spindle bearings can bear the strength, precision cutting. 2. Machine tools guide wear resistant cast iron and super audio quench processing, machine overall foot of the bed. Fully enclosed protective cover. - Transmission of the choice of frequency control motor, variable speed.3. The machine use GSK, SIEMENS (Siemens), FANUC ( Fanuc), to be completed by the internal and external cylindrical, cone, sphere, thread, and a variety of curve rotating body surface efficiency, precision turning.4. Reasonable layout of the machine, beautiful shape, easy to operate, the use of reliable, efficient, high-precision, high stiffness characteristics applicable to a variety of disk, shaft, and processing of complex parts. Product advantage 1. CKI6163metal lathe-machine lathe cnc machine lathe horizontal lathe machine heavy duty lathe machine turining lathe2. CKI6163 cnc metal lathe-machine lathe cnc machine horizontal lathe machine heavy duty lathe machine turining lathe machinery3. CKI6163 cnc machines lathe cnc lathe lathe cnc machine cnc lathe machine horizontal lathe machine metal lathe heavy duty lathe machine4. CKI6163 Can perform internal and external turning, taper turning, end facing, and other rotary parts turning; Specification Of Flat Bed CNC Lathe Machine CKI6163

Item	Unit	CKI6163
Max swing over table	mm	630
Max swing diameter over carriage	mm	350
Spindle head		C11/1:20
Chuck		K11/320
Max processing length	mm	1000
Bar diameter	mm	95
Spindle through hole diameter	mm	105
Spindle motor	kw	11
Spindle rotation speed	rpm	Spindle 3 grades gear box:45-950
Servo motor connection type		Direct connection
X axis rapid feed	m/min	6
Z axis rapid feed	m/min	8
Tool width*height	mm	25*25
Turret center height	mm	254
Tailstock Shaft diameter*travel	mm	φ95*250
Tailstock taper		MT5
Positioning accuracy	mm	0.01
Power	kw/h	15
Dimension	mm	3500*1500*1700
Net weight	kg	3000

  Standard Accessories:GSK 980TDiController system, servo motor and drivingCutting fluid systemWorking lightSpindleAuto lubrication system Machine coverOperation unit4 position electronic turret+3 jaw chuckLeveling pad Manual tailstock Tools and toolbox Technical documentsOptional accessories:3 jaw hydraulic chuck Auto feed bar
