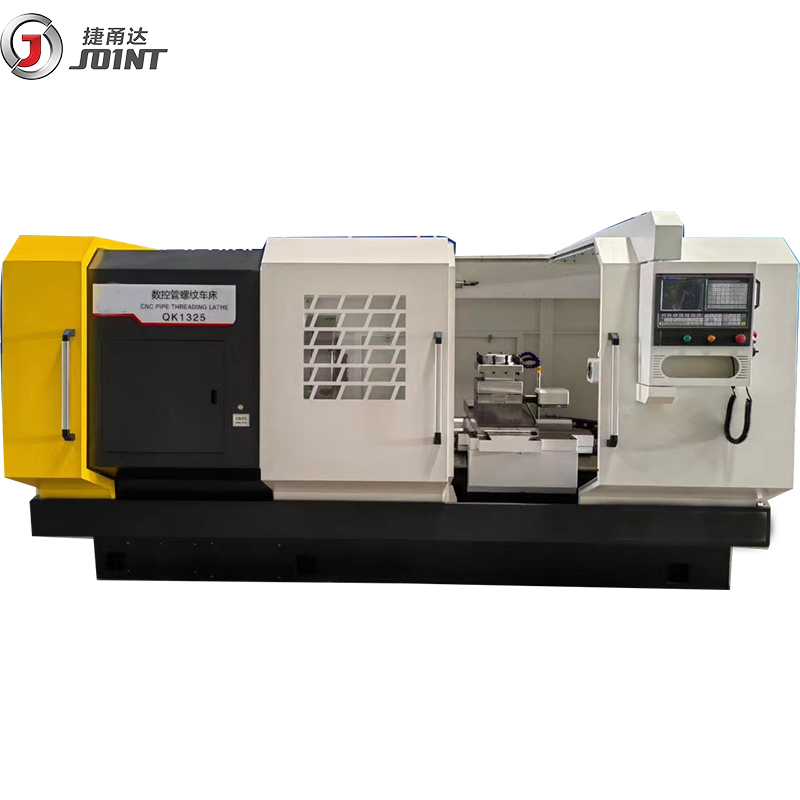

| Item | Unit | QK1325 |
| Max dia. swing over bed | mm | 800 |
| Max dia. swing over cross slide | mm | 540 |
| Max length of workpiece | mm | 1500 |
| Width of bed | mm | 550 |
| Spindle bore | mm | 255 |
| Power of spindle motor | Kw | 11 |
| Mode of spindle speed | Two gears Smooth adjustment | |
| Range of spindle speed | r/min | (L): 25-120 (H): 100-350 |
| X/Z axis travel | mm | X:450 / Z:1250 |
| X/Z axis rapid traverse | mm/min | 4000 |
| X axis motor speed | r/min | 1500 |
| X axis motor torque | N.m | 10 |
| X axis motor power | Kw | 1.5 |
| Z axis motor speed | r/min | 1500 |
| Z axis motor torque | N.m | 15 |
| Z axis motor power | Kw | 3.8 |
| Tailstock quill diameter | mm | 100 |
| Tailstock quill travel | mm | 250 |
| Tailstock quill taper | MT5 | |
| Turret model | HAK-21240 | |
| Tool post type | Vertical 4- station | |
| Turret dimension | mm | 240x240 |
| Turret indexing time | s | 2.6 |
| Chuck | K11-630 four jaw chuck | |
| Positioning accuracy | mm | 0.02 |
| Repositioning accuracy | mm | 0.01 |
| Machine size | mm | 3700x2000x1800 |
| Machine weight | Kg | 6000 |
