| Table Size: | 700*400mm | Electrode Head: | 280mm |
|---|---|---|---|
| Max Load Of Electrode Head: | 120kg | Size Of Oil Container: | 1100*710*450kg |
| Net Weight: | 1500kgs | Model: | ZNC-450 |
| Color: | Optional | Table Travel: | 450*350*200mm |

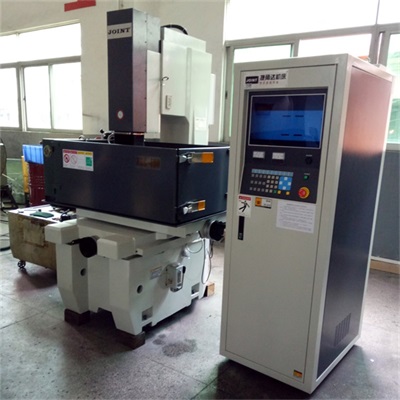

Stable and reliable quality ZNC450 electric discharge machine for mould processing 1. Full size model machine could meet with all requirements of mould processing 2. Adopted Famous Taiwan brand controller. 3. The machine is reliable and accuracy 4. All key partsare from Taiwan and Japanese top brands, the machine quality is very well. 5. Automatic compute, mesh and adjustment - For generally machining Quick details:
Electric cabinet specification:
Standard accessories: 1. Fire extinguisher 2. Electric cabinet 3. Tool and tool box 4. 150*350mm magnet chuck
1. small footprint, can be placed in a relatively small workplace,
2. Segmented processing, rough, medium and fine programming.
3. Perfect digital display system, so that the displacement of the coordinates to achieve clear,
4. Bottom fine function - When machining reached desired depth, it will continuously work for fine machining process.
5. For depth remain unchanged, best surface finishing effect is provided.
6.Instant, genuine distance control electrode, work piece and electrode can be set for optimal gap
Engine specification: | Model | ZNC450 |
| Size of oil container | 1100*710*450mm |
| Table size | 700*400mm |
| X axis travel | 450mm |
| Y axis travel | 350mm |
| Z axis travel | 200mm |
| Electrode head | 280mm |
| Max distance from the electrode head to table | 480mm |
| Max load of electrode head | 120kg |
| Max load of table | 1200kg |
| Dimension | 2050*2530*2400mm |
| Net weight | 1500kg |
| Filter container cube | 400L |
| Filter container net weight | 150kg |
| Model | ZNC Machine |
| Control mode and axis No. | NC with close circuit/single z axis control |
| Min setting value | 0.005(0.001)mm |
| Max setting value | 9999.995(9999.9999)mm |
| Coordination system | INC ABS |
| Screen | 15'' FTT |
| Control system | Industrial PC |
| Moving velocity of controller | 0.005mm per unit*1, *5, *10 |
| Procedure in store | 0-999 groups |
| Max current for processing | 50A |
| Input rated power | 5KVA |
| Max cutting processing speed | 360mm²/min |
| Consumption of electrode head | ＜0.2% |
| Best surface rough | 0.25 |
| Dimension | 620*860*1850mm |
| Net weight | 210kg |
