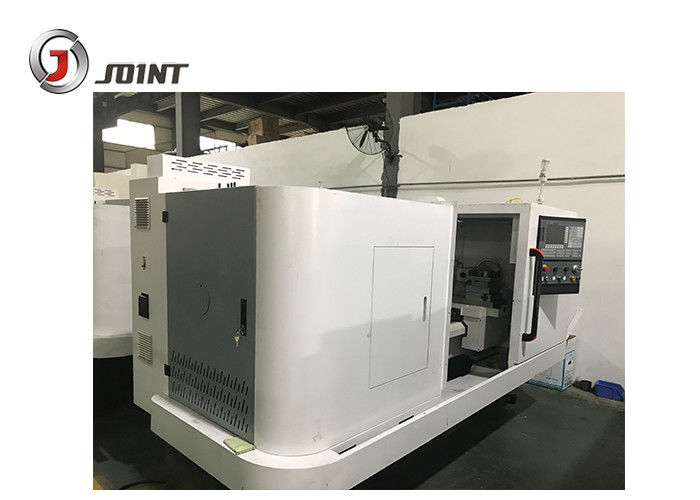

75mm Tailstock Shaft Diameter Flant Type CNC Lathe Machine CKI6150​ Quick details: 1. Adopting the 980TDI CNC system, in addition to the traditional RS-232 interface, it also supports U disk transmission, speeding up the program transmission speed; the operation is also more convenient 2. Servo motor adopts a large number of motors, featuring large torque and fast response. 3. Guide rails and ball screws adopt a centralized automatic lubrication system, which can periodically and quantitatively inject oil to each lubrication part to ensure uniform lubrication of each moving surface, effectively reducing frictional resistance, improving movement accuracy, and ensuring the service life of guide rails and ball screws. Product advantage 1. It is made from the whole cast-iron, which is heavy enough with good rigidity andstability.2. Three gears controlled by a handle, stepless speed regulation, with lower noise andhigh- standard machining accuracy, is an environmental- protective machine.3. The spindle is the high- rotate speed and sophisticated bearing with smooth surface.The extra size diameter of the spindle bore is φ82mm while the diameter of chuck isφ250mm. 4. The machine through the numerical control system could automatically process the inside and outside cylinder surface, cone surface, circular, arc surface, end face etc. Also can process the single and multiple threads in metric, inch and other standards. Specification Of Flat Bed CNC Lathe Machine CKI6150

Item	Unit	CKI6150
Max swing over table	mm	500
Max swing diameter over carriage	mm	290
Spindle head		D8
Max processing length	mm	1500
X axis Travel	mm	295
Z axis Travel	mm	1300
Spindle through hole diameter	mm	82
Spindle motor	kw	7.5
Spindle rotation speed	rpm	Spindle 3 grades gear box:45-180, 180-750, 600-1600r/minmanual 24 grades, 9-1600r/min
Servo motor connection type		Direct connection
X axis rapid feed	m/min	6
Z axis rapid feed	m/min	8
Tool width*height	mm	25*25
Turret center height	mm	≤145
Tailstock Shaft diameter*travel	mm	φ75*120
Tailstock taper		MT5
Positioning accuracy	mm	0.01
Power	kw/h	10
Dimension	mm	2490*1420*1600
Net weight	kg	2300

  Standard Accessories:GSK 980TDiController system, servo motor and drivingCutting fluid systemWorking lightSpindleAuto lubrication system Machine coverOperation unit4 position electronic turret+3 jaw chuckLeveling pad Manual tailstock Tools and toolbox Technical documentsOptional accessories:3 jaw hydraulic chuck Auto feed bar
