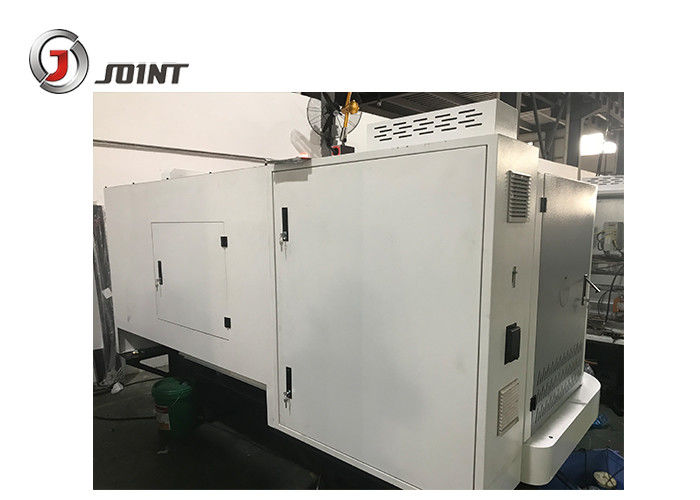

Joint CKI6163 Flat Type CNC Lathe Machine Max Processing Length 3000mm Quick details: 1.Backward curved chip mode,guide the use of ultra-frequency hardening,and thus the machine has good rigidity,accuracy and precision of retention.2.Uniaxial structure headstock with frequency control,ensuring a high-speed spindle,high precision.3.Manual two tranches of structured headstock spindle using three-point support, stalls inside stepless spindle ensures rigidity and high speed, high torque cutting.4.Double door protection, waterproof performance is good, the work area motors and switches have a reliable protection for coolant under wet cutting operational requirements.5.Mature product structure, excellent performance, reasonable price and high market share. Product advantage 1. Spindle adopts high precision rolling bearings, high precision rotary plate aspect to adopt high precision ball screw transmission, good dynamic performance, precision positioning.2. The machine tool guide with wear-resistant cast iron and after the audio quenching, the hardness of the HRC45 above, can ensure the long-term stability of processing accuracy. Specification Of Flat Bed CNC Lathe Machine CKI6163

Item	Unit	CKI6163
Max swing over table	mm	630
Max swing diameter over carriage	mm	350
Spindle head		C11/1:20
Chuck		K11/320
Max processing length	mm	3000
Bar diameter	mm	95
Spindle through hole diameter	mm	105
Spindle motor	kw	11
Spindle rotation speed	rpm	Spindle 3 grades gear box:45-950
Servo motor connection type		Direct connection
X axis rapid feed	m/min	6
Z axis rapid feed	m/min	8
Tool width*height	mm	25*25
Turret center height	mm	254
Tailstock Shaft diameter*travel	mm	φ95*250
Tailstock taper		MT5
Positioning accuracy	mm	0.01
Power	kw/h	15
Dimension	mm	3500*1500*1700
Net weight	kg	3650

  Standard Accessories:GSK 980TDiController system, servo motor and drivingCutting fluid systemWorking lightSpindleAuto lubrication system Machine coverOperation unit4 position electronic turret+3 jaw chuckLeveling pad Manual tailstock Tools and toolbox Technical documentsOptional accessories:3 jaw hydraulic chuck Auto feed bar
