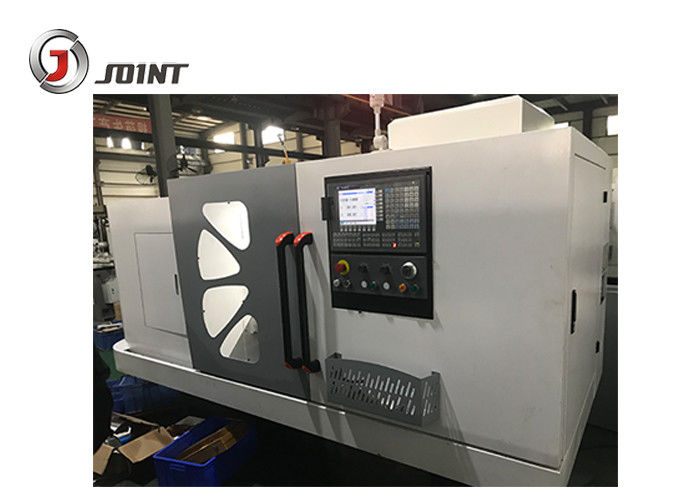

1500mm Max Processing Length Flat Type CNC Lathe Machine CKI6163 11KW Spindle Quick details: 1. Threading Inch, Metric, Module and D.P.;2. Perform drilling, boring and groove broaching;3. Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;4. Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;5. There are hand brake and foot brake for users to choose;6. These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50Hz,60Hz). Product advantage 1. Precision ground and supersonic frequency hardened bed ways2. The spindle is supported with precision roller bearingsPrecision ground and supersonic frequency hardened bed ways. 3. The spindle is supported with precision roller bearings.Headstock gears are made of high quality steel, ground and hardened.Spindle speed range 45-950RPM. 4. Sealed and easy operating feed box has various feeds and thread cutting functions. Specification Of Flat Bed CNC Lathe Machine CKI6163

Item	Unit	CKI6163
Max swing over table	mm	630
Max swing diameter over carriage	mm	350
Spindle head		C11/1:20
Chuck		K11/320
Max processing length	mm	1500
Bar diameter	mm	95
Spindle through hole diameter	mm	105
Spindle motor	kw	11
Spindle rotation speed	rpm	Spindle 3 grades gear box:45-950
Servo motor connection type		Direct connection
X axis rapid feed	m/min	6
Z axis rapid feed	m/min	8
Tool width*height	mm	25*25
Turret center height	mm	254
Tailstock Shaft diameter*travel	mm	φ95*250
Tailstock taper		MT5
Positioning accuracy	mm	0.01
Power	kw/h	15
Dimension	mm	3500*1500*1700
Net weight	kg	3350

  Standard Accessories:GSK 980TDiController system, servo motor and drivingCutting fluid systemWorking lightSpindleAuto lubrication system Machine coverOperation unit4 position electronic turret+3 jaw chuckLeveling pad Manual tailstock Tools and toolbox Technical documentsOptional accessories:3 jaw hydraulic chuck Auto feed bar
